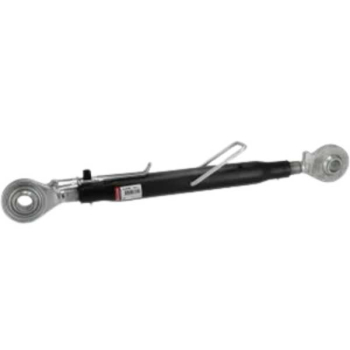

Toplink M36 thread diameter, category 3/3
| Long description |
Toplink M24 x 3,0 - M36 x 3,0
|
|
|---|---|---|
| Application range |
M36 for tractors up to 135 kW |
|
| Properties |
|
|
| Connections category |
Eye - Eye
|
|
| Category by tractor side |
3
|
|
| Category by machine side |
3
|
|
| Rod length |
510 mm
|
|
| Rod outside diameter |
60,3 mm
|
|
| Min working length |
670 mm
|
|
| Max working length |
890 mm
|
|
| Thread type |
Metric
|
|
| Thread diameter |
M36
|
|
| Thread pitch |
3.00 mm
|
|
| Connection hole diameter by tractor side |
32 mm
|
|
| Connection hole diameter by machine side |
32 mm
|
|
| Wall thickness |
6,35 mm
|
| Max Length | 890mm |
|---|---|
| Type | Toplink |
| Thread | M36 |
| Category | 3/3 |
| Hole size | 32mm |
| Min Length | 670mm |
There are no downloads for this product.
